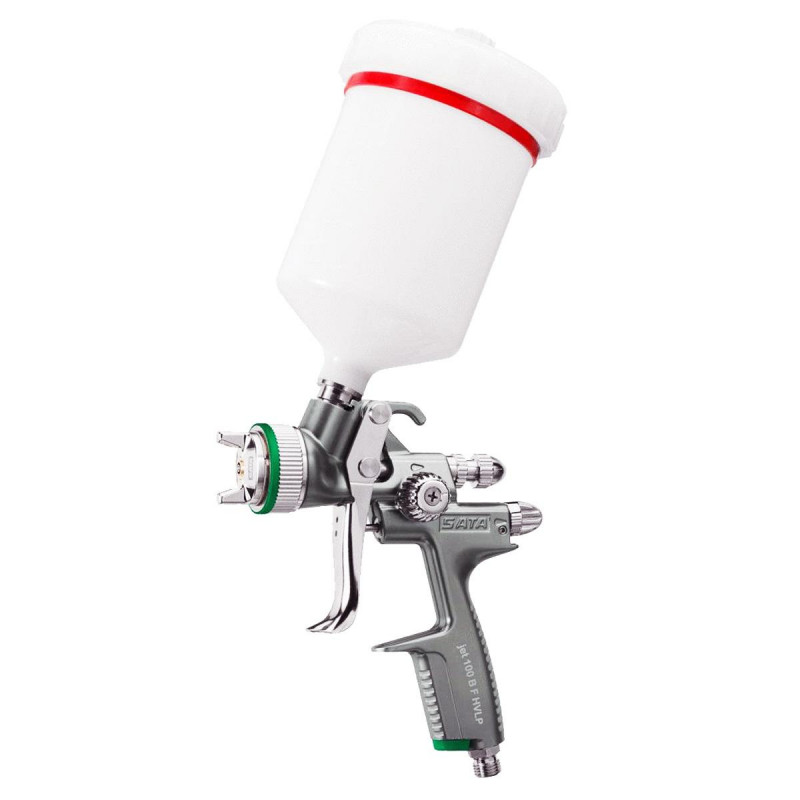

SATAjet Spray Gun 100 B F HVLP / 1.7

Low overspray primer and filler gun. This paint spray gun offers extra high savings by reducing car refinish sanding to a minimum.

Features:

• Highest economic efficiency – SATA’s HVLP technology guarantees Transfer Efficiency rates significantly above the required 65% by VOC legislation.  This spray gun for filler and primer is not only environmentally friendly but it also saves a lot of material.
• Ergonomically optimised spray gun body in state-of-the-art design with small dimensions and low weight for fatigue-free working
• Nozzles sizes ranging from 1.2 to 2.1 for primer and filler work
• 100% hand checked nozzle sets ensure the constant high SATA quality – for complete guns as well as spare nozzle sets
• Smoothly polished gun surface for easy and quick cleaning including material pas-sages
• Now with material-flow control with counter nut and enhanced thread, as with the top coat spray guns
• Air micrometer with graduations to adjust atomisation air
• Suitable for Waterborne Paints - paint needle and nozzle are made of stainless steel and the spray gun body has been carefully anodize
• Self-adjusting air and material packings with a long lifetime significantly reduce the need for servicing
• Comfortable trigger with low trigger-pull resistance and integrated paint needle cover, minimising cleaning effort and increasing the life time of the needle packing
• CCS-Clip (Colour Code System) to mark each spray gun individually
• Single-handed round/flat control to adjust the spray pattern to the object which is to be painted
• QCC quick cup connector for quick cup changes and fast cleaning

Technical details:

• Air consumption: 350 Nl/min (12,4 cfm)
• Maximum operating temperature: 50
• Weight: 606 g
• Recommended inlet pressure: 2 bar (29 psi)
• Maximum operating overpressure: 10 bar (145 psi)
• Air inlet: G 1/4 a
• Gravity Cup: 600 ml
